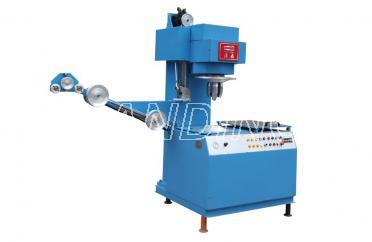

8 type coiler for data cable (single head)

500mm brake-type coiling machine

Purpose of this coiling machine:

this machine is specially designed for LAN cables (i.e. the coiling of cat 5, cat 5E, cat 6, and cat 7 BV, BVR cables)

Specification:

 Coiling wire diameter    1.8-8.0mm (Soft wire and cable)
  Coiling Inner diameter    150-250mm
  Coiling diamter    Max 500mm
  Coiling length    100-1000m
  Rotate speed    Max 250 RPM, stepless speed regulation
  Motor power    2.2KW DC motor
  Pay-off bobbin    1000 Outer diameterX500 barrel diameterX630 inner width (mm)
  Pay-off motor power    3.5KW
  Pay-off bobbin lifting    Power-driven screw-rod lifting
  Operation direction    From left to right
  Installation dimension    (L)6.05XW)1.62X(H)2.06m
  Total weight    About 2000kg
