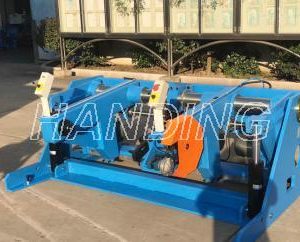

800 double spool type active pay-off with no shaft 1. Seven individual wires will be taken up on a single DIN80…

Main technical requirements

a. Spool outer diameter: φ630mm-φ800mm

b. Spool axle hole diameter: φ56mm-φ127mm

c. Pay-off wire diameter range: for doubling wire φ0.25mm-φ0.85mm, for single wire φ0.5mm-φ1.2mm, for insulated wire ≤φ4mm.

d. Max pay-off speed: 250m/min.
