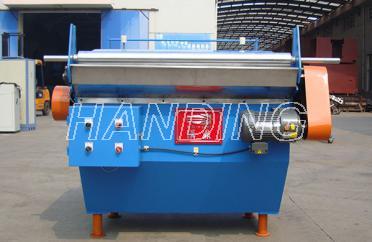

Copper powder filtering machine

1. Main performance of the machine

External dimension: L×W×H（1600×1200×1100）mm

Electric power consumption: 380V    500W

Diameter of water inlet: 4-6 inches

Engineering capability: 2-5 sets of middle drawing machine，10-20 sets of thin drawing machine

Operate: Water level control chain transmission type (moment and continuous all can)

Power: 1/4 horsepower

Filtration fabric: Filter material of non-woven fabric (1050mm×100 yard)

Warranted period: One year (except for man-made factors)

2. Main features of the machine

Full-automatic mechanization, low failure rate and easy to change the filtration fabric;

Easy installation and not the space; discontinuous running, save electricity and silent;

Easy recovery of copper powder, reduce the wire-break rate, increased production volumes;

Wire drawing liquid stay clean, less friction force of the cone pulley surface, life was prolonged, wire drawing station cleaning, don’t born copper paste, copper wire of high quality stability, bore diameter of the eye-die not easy deformation.
