Application:

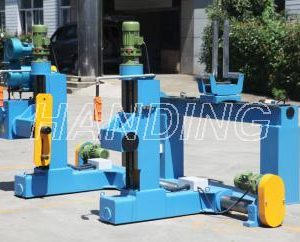

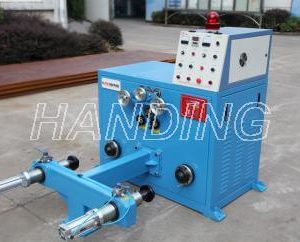

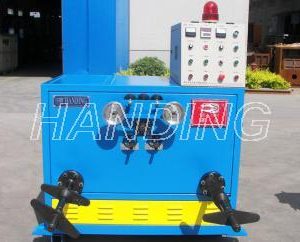

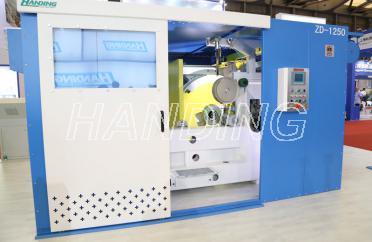

Tandem double bobbin take-up machine, no-axis double-side air pressure top shaft, it’s suitable for rough and middle wire drawing and core wire high speed extruder take-up. MMI + PLC computer control speed synchronous, full automatic change the bobbin, load and unload bobbin operation, enclosed line-speed detected automatically qualify for buffer wheel unit.
Specification:
| Model | Diameter of bobbin (mm) | Overall width fo bobbin (mm) | Load (kg) | Wire diameter (mm) | Speed (m/min) |
| HD-500 | 400-500 | 300-375 | 250 | 0.4-4.0 | 1800 |
| HD-630 | 500-630 | 375-475 | 500 | 2.5-6.0 | 1600 |
| HD-1000 | 800-1000 | 500-750 | 1500 | 3.0-10 | 1000 |
| HD-1250 | 1000-1250 | 700-950 | 2500 | 3.5-12 | 800 |
| HD-1600 | 1250-1600 | 950-1200 | 4000 | 4.0-16 | 600 |
