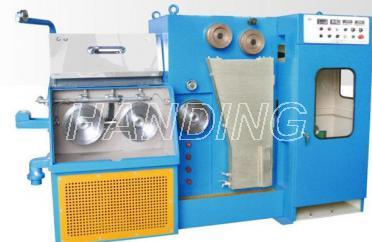

Fine wire drawing machine

Usage:copper drawn and annealed

1.Inlet size:Ф0.8-1.2mm

2.Outlet size:Ф0.1-Ф0.30mm

3.Machine speed/max:35m/s

4.Die number:24

5.Dies size :Ф25mm×8mmT(thickness),die materials:PCD die

6.Slip ratio of machine:1st -23  13%

24th   8%

7.Wire drawing mode:standing-mode and 4axes

8.Driver: dual AC variable frequency inverters control(11KW+3.7KW)

9.Main motor:  11KW AC  3 phase motor Spooler motor:3.7KW AC 3 phase motor

10.Annealing voltage:DC55V/max

11.Annealing current:DC300A/max

12.Annealing power:16KV

13.Annealing method:D.C three-section annealer

14.Quantity of steam:10kg/h

15.Demand Water quantity for annealing and coolant:250L/min

16.Machine frame:welded by steel plate

17.Transmission:By flat belts

18.Capstan: ceramic coated

19.Lubricating system:Demanding quantity of lubrication 40 kiloliters/min, to spray the Die and capstan

20.Bobbin size:300mm,(designed as customer’s  requirement)

21.Bobbin loading &unloading type:shaft type &manual

22.Traversing unit:110W synchro motor, width: 270mm/max

23.Bobbin controlling:weight balance & tension control,revising the bobbin tension automatically.

24.Brake:10KG-M magnetic brake
