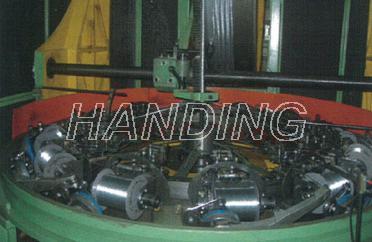

This kind of heavy duty type high speed braiding machine uses high technological frequency conversion control and controlling technology of SCM. It can timing smoothly,braid with high speed and show all breskdown automatically. Meanwhile, it has low noises, strong reliability and good wear ability. The spindle stand has automatic lubricative system and safe fire fighting cover. This kind of machine can braid copper wires and other metal wires, such as Mg-AL, alloy wires, stainless steel, etc.
| Name | Unit | Technical data | ||
| HGSB-16E | ||||
| 1 | Braiding type | over | 2×2 | |
| 2 | Braiding direction | Vertical | ||
| 3 | Upper spindle | piece | 8 | |
| Lower spindle | piece | 8 | ||
| 4 | Bobbin size | mm | Φ110*Φ48*100*110 | |
| 5 | Speed | R/min | 15-70RPM | |
| 6 | Pitch | mm | 7.0-94.09 | |
| 7 | Max. cable dia. | mm | Φ25 | |
| 8 | Wire diameter | mm | 0.15～0.40 | |
| 9 | Main motor | Power frequency | 4.0Kw 50Hz | |
| Voltage | 380V、12.6A | |||
| Rotation speed | rpm | 960 | ||
| 10 | Noise | dB | ≤85db | |
| 11 | Outside size | mm | 1737*1535*2305 | |
| 12 | Net weight of the machine | kg | 3200 | |
| 13 | External electric retractable wire frame(Optional) | mm | Φ1250-1600 | |
