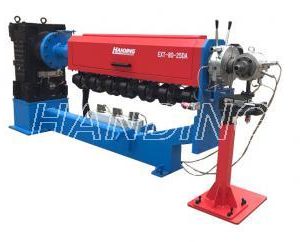

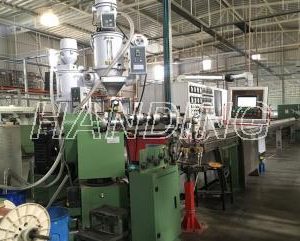

High efficiency extrusion line
High efficiency extrusion line is used for extruding the insulation and sheath of wire and cable.
Specification：
| Model | EXT-70x25Dmm | EXT-75x25Dmm | EXT-80x25Dmm | EXT-90x25Dmm | EXT-100x25Dmm | EXT-120x25Dmm | EXT-150x25Dmm | EXT-180x25DAmm | EXT-200x25Dmm | |
| Take up and pay off type | End-shaft type or gantry moving type | |||||||||
| Pay off bobbin | Φ1250mm | Φ2000mm | Φ2000mm | Φ2500mm | Φ2500mm | Φ2500mm | Φ3150mm | Φ3150mm | Φ4150mm | |
| Tension traction | 500kg | 500kg | 500kg | 800kg | 800kg | 800kg | 3200kg | 3200kg | 3200kg | |
| Screw diameter | Φ70mm | Φ75mm | Φ80mm | Φ90mm | Φ100mm | Φ120mm | Φ150mm | Φ180mm | Φ200mm | |
| Screw L/D ratio | 25:1 BM | 25:1 BM | 25:1 BM | 25:1 BM | 25:1 BM | 25:1 BM | 25:1 BM | 25:1 BM | 25:1 BM | |
| Output | 300kg/hr | 300kg/hr | 350kg/hr | 450kg/hr | 550kg/hr | 800kg/hr | 1200kg/hr | 1300kg/hr | 1600kg/hr | |
| Main power | 45Kw | 55 Kw | 90Kw | 110Kw | 132Kw | 132Kw | 250Kw | 250Kw | 315Kw | |
| Outlet wire scope | 5-25mm | 5-30mm | 16-35mm | 16-50mm | 20-80mm | 30-80mm | 50-140mm | 30-140mm | 35-200mm | |
| Tractor type | Caterpillar | |||||||||
| Traction force | 800Kg | 1250Kg | 1250Kg | 1250Kg | 1600Kg | 2000Kg | 3200Kg | 3200Kg | 3200Kg | |
| Cooling device | Single layer U type water trough | |||||||||
| Length of water trough | 20M(Before 4M After 16M) | 22M(Before 4M After 18M) | 24M(Before 4M After 20M) | 32M(Before 4M After 28M) | ||||||
| Length of water trough | 250X230X2 | 250X230X2 | 250X230X2 | 250X230X2 | 280X230X2 | 280X250X2 | 380*400*2.5 | 380*400*2.5 | 400X360X2.5 | |
| Size of water trough | Φ1250 | Φ2000 | Φ2000 | Φ2500 | Φ2500 | Φ2500 | Φ3150 | Φ3150 | Φ4150 | |
| Traction speed | 2.3-100 m/min | 2.3-100m/min | 2.3-100m/min | 2.3-100m/min | 2.3-100m/min | 2.3-100m/min | 5-100m/min | 5-100m/min | 0-100m/min | |
