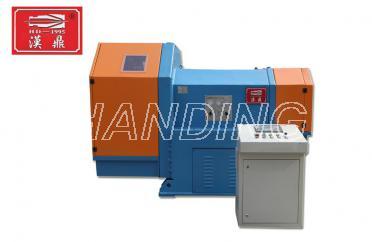

Interlocking armouring machine

Interlocking Armoring Machine

Application：

This machine is mainly use for armoring the round cable

Main Technical Data：

1.1 Theory sectional drawing of interlocking

1.2 Cable diameter before armoring: Φ8～Φ55mm

1.3 Max rotating speed of main machine: 800r/min（design speed）

1.4  Armoring pitch: 6.3～12.5mm

1.5 Max pulling force: 800kg

1.6  Max line speed: 10m/min（design speed）

1.7 Pay off coil size: Φ900mm × Φ400mm × 203mm (OD x ID x WIDTH)

1.8  Tape thickness: 0.5～1.0mm

1.9  Tape width: 9.5mm、12.7mm、19mm

1.10 Tape material: Al Alloy, Galvanized steel tape, stainless steel tape

1.11 Armoring type: S type

1.12  Pay off reel size: PN1000～PN2000mm

1.13 Take up reel size: PN1000～PN2000mm

1.14  Main motor power: 22KW(AC variable frequency motor, Siemens)

1.15  Capstan motor: 1.5kw (AC servo motor)

1.16 Central height: 1000mm
