Application：
The unit can produce No.4 to 5, No.6, No,7 data cable and No. 5 cable below 25 and data cable of unit structure below 200 pairs; in addition, FTP, STP, SSTP and other data cables with different kinds of structures can be produced.

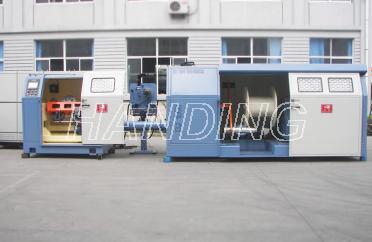

Structure：
1. Divide wire mould frame
2. Rotate wheel type tractor
3. Two piece of single twist type slanted taping head
4. 1000 Single twist cabling machine
5. One set of electrical cabinet
Option：
1、Four eight-bobbins 500/630 active pay-off
2、Yarn taping machine
3: Seven head divide color binding and wire dividing device
Note: Every four pairs active taping, meanwhile pre-twist+ cabling + taping + take-up
Specification:
| Cabling number of pair | 4-25 (pairs) | |
| Max diameter | 12mm | |
| Pitch range | 80 -300mm | |
| Max rotate speed of bow | 500RPM | |
| Max line speed | 150 m/min | |
| Twist direction | Left-twist or right-twist | |
| Pay-off bobbin (mm) | A/630X250X475 / B0500x250x250 | |
| Take-up bobbin (mm) | 1000*500*750 | |
| Take-up bobbin lifting | Hydraulic lifting platform load and unload | |
| Production line dimension | (L)20.5mX(W)4mX(H)2m | |
| Max rotate speed of rotate tractor | 500 RPM | |
| Max. rotate speed of yarn taping head | 5000RPM(direction by motor direction change) | |
| Pay-off tension | 8-60N (adjustable) | |
| Bundle yarn tension | 5-20N (adjustable) | |
| Taping tension | 5-20N (adjustable) | |
| Direction | From left to right | |
| Main bearing | Adopt Japan NSK or NTN | |
