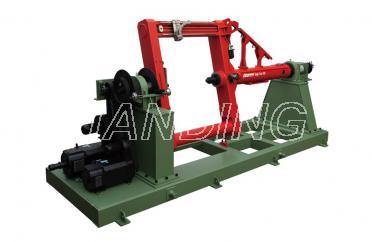

Ф1250mm PLC B type single twisting machine with armoring is suitable to twist LV wire, control cable, MV power cable, steel wire armoring, steel wire screening, pay off wire from capstan directly. Production speed high, can get best cable trough single twisting.
1. Suitable to pay off cable:5.0-10.0mm.
2. Finished diameter: Φ20mm
3. Twisting range:30-350mm, stepless regulation.
4. Traverse: motor traverse wire, motor: 1.5KW
5. Designed speed: Max 450RPM, working speed: MAX 350RPM
6. The size of take-up bobbin designs by GB or the requirements of factory
7. Max loader of pay off: 3500KG
8. Adopt pneumatic opening door, the speed of open can be adjust
