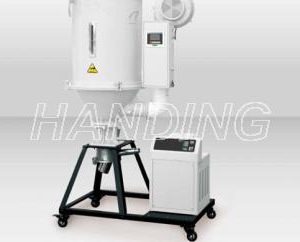

Standard Hopper Dryer

Features

● Adopt hot air diffuser to gain an even hot airftow to improve drying

efficiency.

● Hot air inLet eLbow design can prevent dust piLing up at bottom of the

pipe heaters so as to avoid bumlng,,● All material contact surfaces are made of stainless steel to etiminate

material contamination.

● Hopper separated from its base. erlsuring convenient cleaning.

● All series are equipped with exposed power switch.

● ForSHD-25-150SL, heater pipe5are colrlnected byaluminum sheets

1ind ol:her modets are equipped with temperature protectiorl to prevent

heater pipe from damaging by btower faults.

● Overheat t:ripping can automaticauy cut off powerwhen drying temperature

exceeds set deviation value.

● Adopts heat-insuLated bLower to proLong bLower Lifespan.

● Alt series of modeLs standard equipped with7-day timing and irltermittent

operation function,,● ALl series of modeLs3dopt mlcrocomputer controL and RS485

communication port.

● Max. drying temperature isl60℃.

■   WorkingPrinciple

ln the drying process, hot alr with constar1t temperature is b1owrl by a blower  into  a  two-Layer  in5uLated hopper to dry the materials. Moisture wiLL be separated out arld taken away by hot air. thu5 to gain a satisfiel:l drying effect.

Air bLowlrl out of blower became high temperature drying air after being heated. Through screen protectorand hole screen, l-lot air l[:an be ecluabLy dispersedln the material of storage tank(see picture). Hot air recycler is optional  so  the  air  enter  drying blower after being fLtered to form a cLosedloop circle and save eLectridty.
